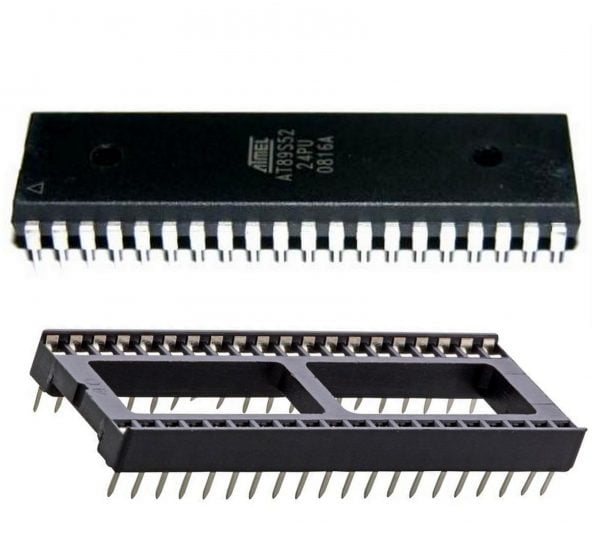

8051 Microcontroller AT89S52 IC With 40 Pin IC Base DIP Package Socket

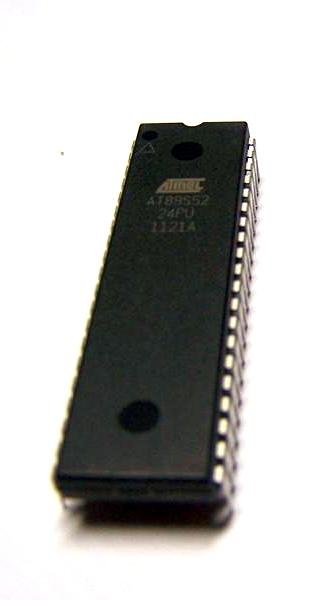

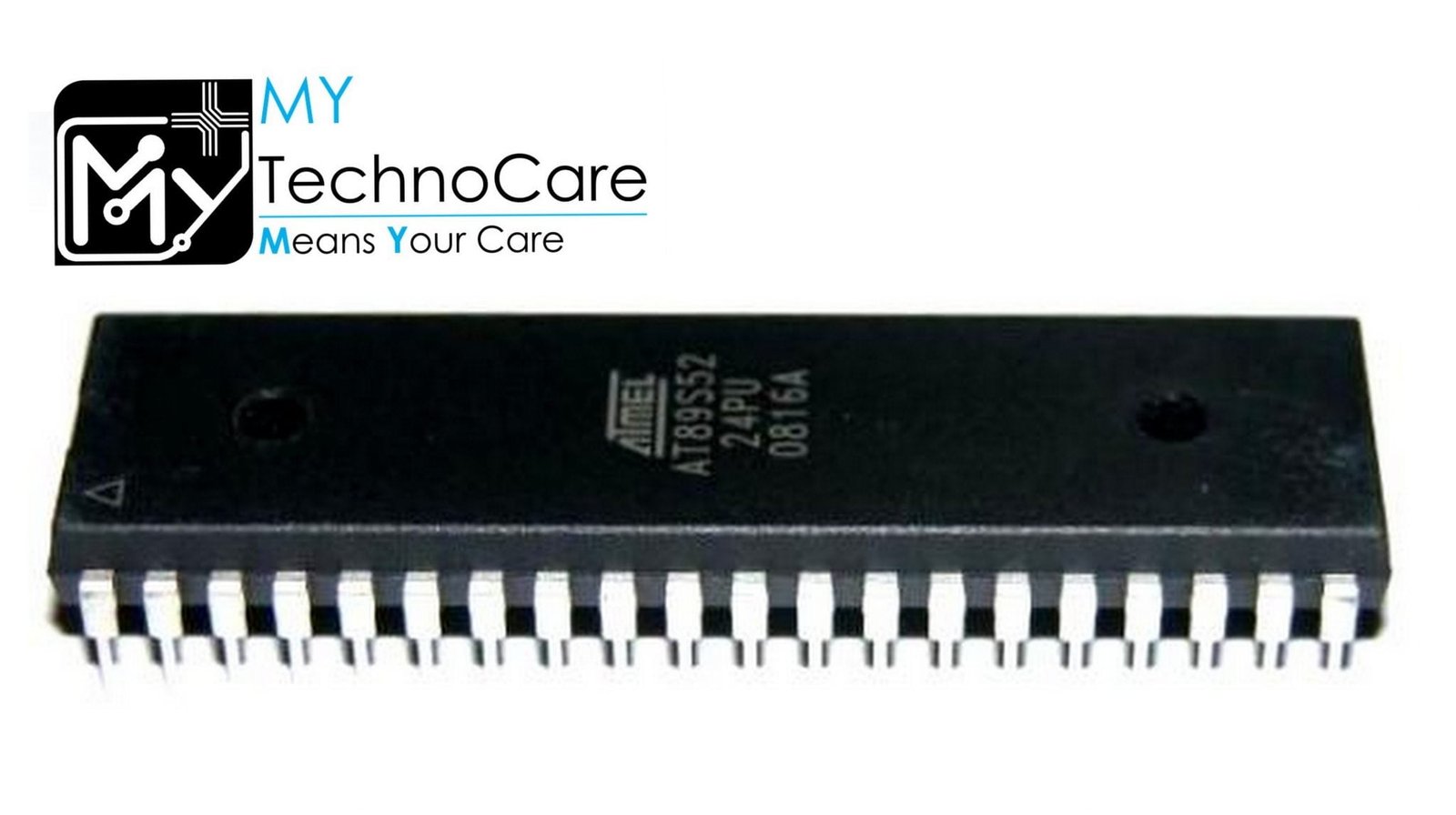

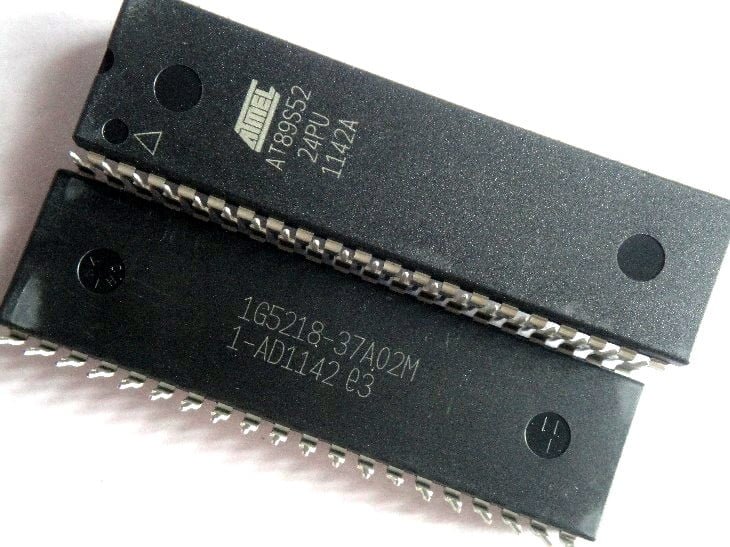

ABOUT 40 Pin IC Base & Atmel AT89S52 Microcontroller:
40 Pin ic Base or 40pin ic Socket DIP Package with 89s52 ic is mostly used for the 8051 Microcontroller Development Kit. The AT89S52 is a low-power, high-performance CMOS 8-bit microcontroller with 8K bytes of in-system programmable Flash memory because of that AT89s52 ic is used for the 8051 Microcontroller Development Kit. The device is manufactured using Atmel’s high-density nonvolatile memory technology and is compatible with the industry-standard 80C51 instruction set and pinout. Another advantage is that it has on-chip Flash so it allows the program memory to be reprogrammed in-system or by a conventional nonvolatile memory programmer. By combining a versatile 8-bit CPU with in-system programmable Flash on a monolithic chip, As a result, the Atmel AT89S52 is a powerful micro controller which provides a highly flexible and cost-effective solution to many embedded control applications. Finally, it is DIP Package So user can easily remove and install on the development kit.
Features AT89S52 DIP Microcontroller & 40 Pin IC Base:
- Data Bus Width: 8 Bit | Rating Frequency: 24MHz; Maximum Clock Frequency: 33 MHz
- Mounting Style: Through Hole | Package: 40 Pin DIP Package | Total Size: 5.3 x 1.6 x 0.8cm/2.1″ x 0.63″ x 0.315″(L*W*T)
- 8KB (ISP) Flash Memory | 256 x 8-bit Internal RAM
- 4.0V to 5.5V Operating Range | Low-power Idle and Power-down Modes
- Eight Interrupt Sources | Interrupt Recovery from Power-down Mode
- 32 Programmable I/O Lines | Three 16-bit Timer/Counters | Watchdog Timer | Flexible ISP Programming (Byte and Page Mode) | Full Duplex UART Serial Channel
Specification of 40Pin IC Socket & AT89S52 Microcontroller:
- Compatible with MCS-51 Products
- 8K Bytes of In-System Programmable (ISP) Flash Memory
- Endurance: 10,000 Write/Erase Cycles
- 4.0V to 5.5V Operating Range
- Fully Static Operation: 0 Hz to 33 MHz
- Three-level Program Memory Lock
- 256 x 8-bit Internal RAM
- 32 Programmable I/O Lines
- Three 16-bit Timer/Counters
- Eight Interrupt Sources
- Full Duplex UART Serial Channel
- Low-power Idle and Power-down Modes
- Interrupt Recovery from Power-down Mode
- Watchdog Timer
- Dual Data Pointer
- Power-off Flag
- Fast Programming Time
- Flexible ISP Programming (Byte and Page Mode)

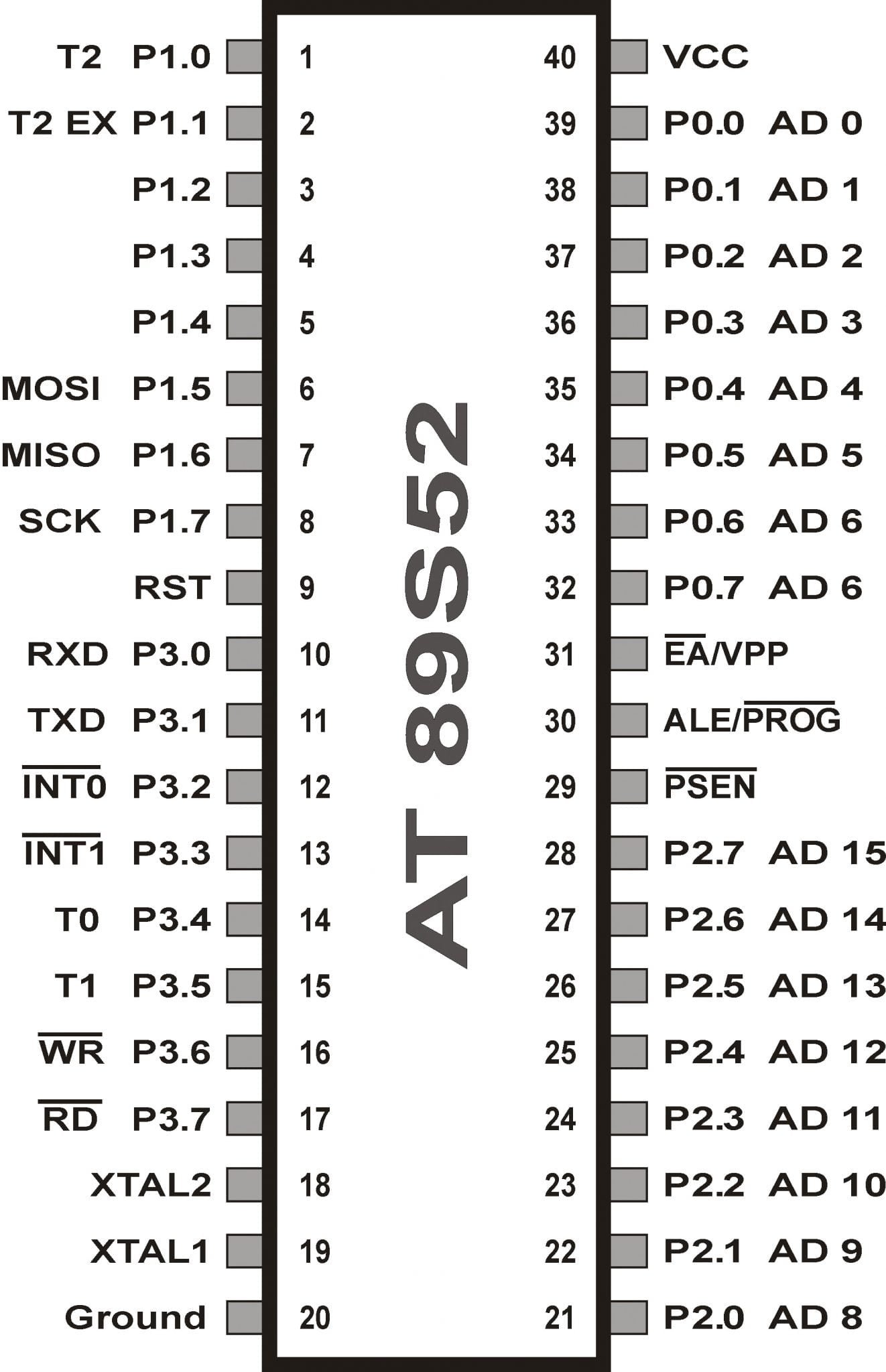

Microcontroller Pin Diagram & Datasheet
Package Contents:
1 X ATMEL AT89S52 40-pin DIP IC

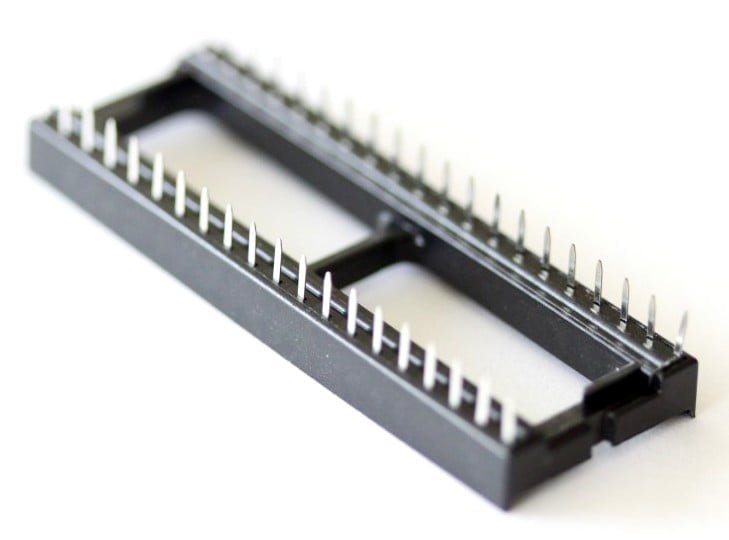

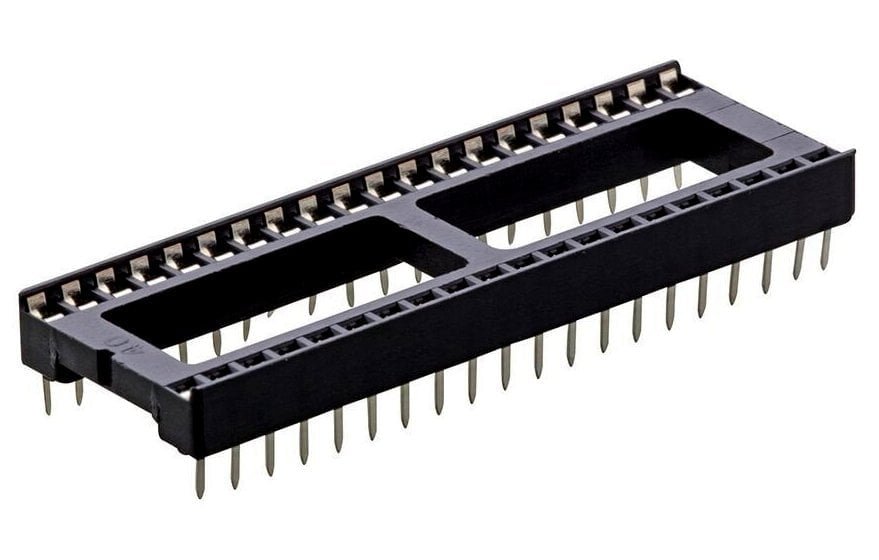

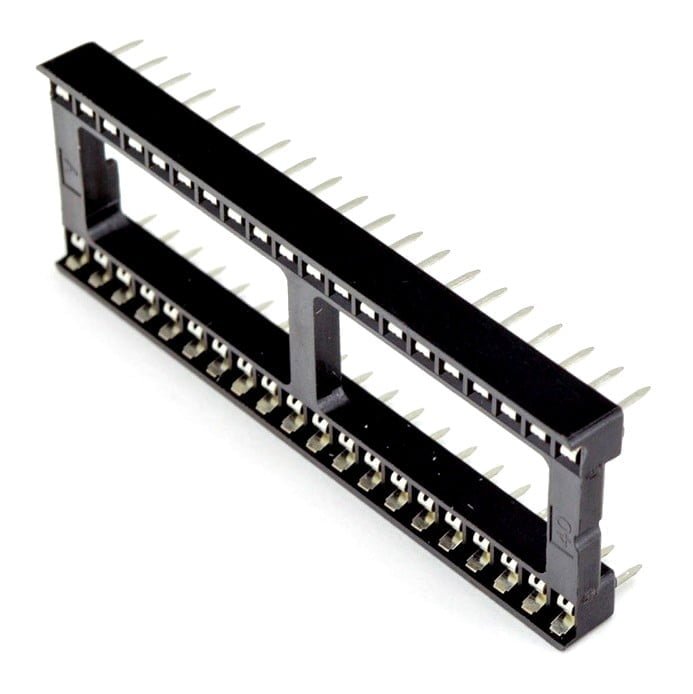

1 X 40 Pin DIP IC Base Socket
