8051 Development Board with Programmer with ZIF Socket MAX232 Atmel AT89S52 IC, Project Board 8051-AVR USB asp Programmer MY TechnoCare

8051 Development Board with Programmer MY8051 Development Board with ZIF Socket MAX232 Atmel AT89S52 IC, Project Board +USB Programmer MY TechnoCare

Buy,Learn.Tutorial. ISP Pin Connection 8051 AVR USB ISP Microcontroller Programmer For 89S51,89S52,AT89SXX,Atmel ATmega,FREE USB CABLE MY TechnoCare www.MyTechnocare.com

MY TechnoCare MY8051 ZIF Small Development Board with MAX232 Atmel AT89S52IC, Project Board,8051, 8051 Development Board, 8051 Programmer, AT89S51, AT89S52, Atmel, Microcontroller, P89V51RD2, Zero Insertion Force, ZIF, ZIF Socket MY TechnoCare www.MyTechnoCare.com

How To Programmer 8051 Microcontroller chip 89s52 Board interfaceing 16x2 LCD USB Programmer Low Price AT89s52 Microcontroller & Learn as per 8051 Datasheet Architecture Pin Diagram Interface Programming of Sensor,LCD,RTC,UART Port,Timer Project ATmel AT89S52 Microcontroller DIP IC For Development Board Programmer 40 Pin Out Diagram low cost India MyTechnoCare.com

8051 Development Board With Programmer AT89S52 Micro Controller | MY TechnoCare

Original price was: ₹1,450.00.Current price is: ₹844.00.

8051 Board:

DIP 40 Pin ZIF (Zero Insertion Force) Socket. For Easy Insert/Remove of IC
ZIF Socket Protect Your Microcontroller From Damage
8051 Development Board Support AT89S51, AT89S52, P89V51RD2, etc. 40-Pin DIP Chip.
USB Programmer can be used for both 8051 & AVR IC (2in1)
AVR 8051 USB ISP Programmer Supports ATmega 8/328, 16, 32 & many others including 8051 with the same Programmer. See List of Supported IC in Description
On-board MAX232 Interface Circuit for Easy Communication with a PC & other RS232 serial devices (GPS modules, GSM Modems, etc)
High-Quality FR-4(1.6 mm) PCB
On-Board 5 mm Power Plug-in DC Jack
On-Board 5V regulator (LM7805) circuit.
On-Board Power ON-OFF switch.
On-Board power indication RED LED.
On-Board GREEN USER LED connected to P2.0 through jumper JP3.
On-Board Input User Switch P3.3 through jumper JP2.
On-Board Input External Interrupt Switch (INT1) at P3.3 through jumper JP2.
On-board Quartz Crystal 11.05892 MHz
Port Extensions for all PORT with Detailed Pin Labeling for Easy Identification of Pin
External Pull-Up resistors for Port 0
On-board ISP connector for loading HEX file into Microcontroller like AT89S51/52 etc.
Vcc bus (5V and 12V) & GND bus provided to Give POWER Supply to the External Peripheral.
Four 3mm mounting Holes for easy mounting
On-board Reset button

USB Programmer:

Allows Read/Write the Microcontroller Flash, EEPROM, Fuse Bit, and Lock Bits
Support Windows OS (XP to 10), Mac OS X, and Linux
SCK Option to Support Targets With Low Clock Speed (<1.5 MHz).
5 KB/sec Maximum Write Speed.
The programmer can provide a 5V supply for Target Microcontroller, so No Need for Any External Supply.
Two Status LEDs | Green LED : Power Supply Indicator | RED LED : For Programmer Busy
6 pin Polarized ISP Interface for Easy Connection.

42 in stock

Description

8051 Development Board with Programmer | ZIF Socket, On-Board MAX232 and AT89S52 Microcontroller IC

8051 Development Board with Programmer Support AT89S51, AT89S52, P89V51RD2, etc. 40-Pin DIP Chip. USB ASP Programmer can be used for both 8051-AVR IC (2in1).

Description of 8051 Microcontroller Board:

If you are learning microcontroller programming and want to make a project based on 8051 microcontrollers then the 8051 Development Board with Programmer kit will help you. Even more with this board you can develop and prototype with any of 8051(AT89S51, AT89S52, P89V51RD2, AT89Cxx) 40 pin microcontrollers. Because The board has 1.5 Amp bridge rectifiers allows this board to be powered with both AC and DC power supply adapters. A board having an RS232 Serial port for flashing the P89V51RD2 (NXP) microcontroller and also it is used for interfacing GSM module, GPS module, RFID module. Furthermore, there is a 5V, 12V, GND power bus which allows to power external peripherals module.

Features of 8051 Development Board with Programmer:

DIP 40 Pin Microcontroller ZIF (Zero Insertion Force) Socket. For Easy Insert and Remove of IC
ZIF Socket Protect Your Microcontroller From Damage
On-board MAX232 Interface Circuit for Easy Communication with a computer & other RS232 serial devices (GPS modules, GSM Modems, etc)
High-Quality FR-4(1.6 mm) PCB
On-Board bridge rectifier so that the board can accept both AC and DC Input voltages Power supply
Recommended Input Voltage : 9-12V
Min-Max Input Voltage : 9-18V
On-Board 5 mm Power Plug-in DC Jack
On-Board 5V regulator (LM7805) circuit.
Power ON-OFF switch.
On-Board GREEN USER LED connected to P2.0 through jumper JP3.
Power indication RED LED.
On-Board Input User Switch P3.3 through jumper JP2.
On-Board Input External Interrupt Switch (INT1) at P3.3 through jumper JP2.
On-board Quartz Crystal 11.05892 MHz
Port Extensions for all PORT with Detailed Pin Labeling for Easy Identification of Pin
External Pull-Up resistors for Port 0
On-board ISP connector for loading HEX file into Microcontroller like AT89S51/52 etc.
Vcc bus (5V and 12V) & GND bus provided to Give POWER Supply to the External Peripheral.
Four 3mm mounting Holes for Easy Mounting
On-board Reset button.
Dimensions: 12cm x 6.4cm

Download document 8051 kit:

AVR 8051 USB ISP Programmer Support many Digital Microcontrollers like (89S51, 89S52, AT89SXX, Classic AT90SXX, CAN Series) & (AVR, ATmega, ATtiny), etc.

About AVR 8051 USB ISP Programmer:

First of all USB AVR and AT89Sxx ISP (In-System Programming) Programmer is a low-cost USB based programmer. There is no need to take out the target microcontroller from the development Board. This programmer will work with a wide variety of Atmel AVR and AT89Sxxxx microcontrollers. This is quite compact, but the design is really elegant. The USB interface is achieved by using an atmega8 processor and the rest is done in firmware.

Features of Atmel AVR/8051 Programmer:

Allows You to Read or Write the Microcontroller Flash, EEPROM, Fuse Bit, and Lock Bits.
Support Windows OS (Xp to 10), Mac OS X, and Linux.
ATmega8 with USBasp Firmware Pre-loaded.
Support ATmega 8/328, 16, 32, and many others including 8051 with the same Programmer.
SCK Option to Support Targets With Low Clock Speed (<1.5 MHz).
5 KB/sec Maximum Write Speed.
The programmer can Provide a 5V supply for Target Microcontroller, so No Need for Any External Supply.
Two Status LEDs | Green LED: Power Supply Indicator | RED LED: This is ON While Programmer is Busy
6 pin Polarized ISP Interface for Easy Connection.

Supported Software Download For 8051 & AVR USB Programmer:

Progisp – Windows GUI application for AVR and AT89Sxx. (2)
AVRdude – Version 5.2 or later. AVRdude is available for many platforms. (1)
Khazama AVR Programmer – All Windows OS (Xp to 10) GUI applications for USBasp & avrdude. (1)

Note:

Khazama AVR Programmer and AVRdude do not support AT89SXX.
Progisp support almost both AVR and also AT89SXX controller.

Download Link:

(All in 1 RAR file) For How to install driver | Circuit Diagram | Connection | Program 8051 AVR Microcontroller | Driver For All Windows OS 64-bit & 32-bit

Download (All in 1 RAR File)

Supported Microcontroller List:

ATMEL ATmega Series:

ATmega8 ATmega8A ATmega48 ATmega48A ATmega48P ATmega48PA
ATmega88 ATmega88A ATmega88P ATmega88PA ATmega168 ATmega168A
ATmega168P ATmega168PA ATmega328 ATmega328P ATmega103 ATmega128
ATmega128P ATmega1280 ATmega1281 ATmega16 ATmega16A ATmega161
ATmega162 ATmega163 ATmega164 ATmega164A ATmega164P ATmega164PA
ATmega169 ATmega169A ATmega169P ATmega169PA ATmega2560 ATmega2561
ATmega32 ATmega32A ATmega324 ATmega324A ATmega324P ATmega324PA
ATmega329 ATmega329A ATmega329P ATmega329PA ATmega3290 ATmega3290A
ATmega3290P ATmega64 ATmega64A ATmega640 ATmega644 ATmega644A
ATmega644P ATmega644PA ATmega649 ATmega649A ATmega649P ATmega6490
ATmega6490A ATmega6490P ATmega8515 ATmega8535

Tiny Series:

ATtiny12 ATtiny13 ATtiny13A ATtiny15 ATtiny25 ATtiny26 ATtiny45 ATtiny85
ATtiny2313 ATtiny2313A

Classic Series:

AT90S1200 AT90S2313 AT90S2333 AT90S2343 AT90S4414 AT90S4433 AT90S4434 AT90S8515 AT90S8535

CAN Series:

AT90CAN128

PWM Series:

AT90PWM2 AT90PWM3

AT89Sxx Series:

AT89S51 AT89S52 AT89S53 AT89S8252 AT89S8253

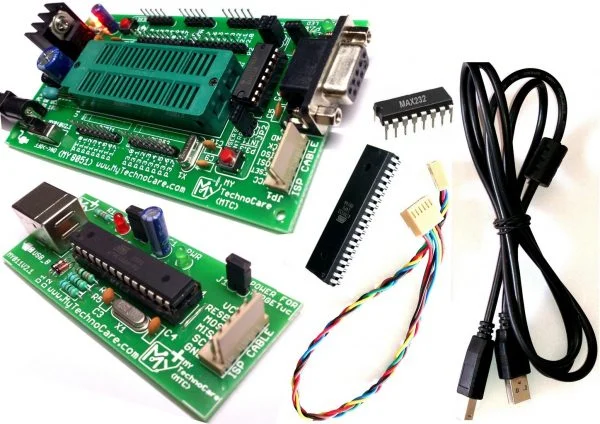

Package Contents:

1 x USB ISP Programmer
1 x 6-pin Polarized Cable
1 x USB A to B Cable
1 x 8051 Development Board with ZIF Socket
1 x AT89S52 On-Board Microcontroller IC
1 x MAX232 On-Board RS232 driver IC

NOTE:

POWER SUPPLY Adapter IS NOT Included WITH THIS ITEM (8051 Development Board with Programmer Kit).

Have any queries, Please Contact Us

More Related Items

Additional information

Weight	114 g
Dimensions	150 × 75 × 70 mm
Model	MY010V2.1(ZIF) & MY011V2.1
Type	Development Project Board With ZIF+ USB Programmer
Brand	MY TechnoCare, Means Your Care
Condition	New: A brand-new, unused and undamaged item.
Power Supply	9 to 12 Volt AC/DC (Board), 5 Volt DC(Programmer)
Display Technology	LED Indicator
Memory	For AT89S52 (8K bytes of Flash, 256 bytes RAM)
Processor Speed	For 89S52 (Up to 33 MHz) (On Board 11.0592MHz)
Functionality	Industrial or Project Development & Programming
Connectivity	Serial RS232 (Board ), USB (Programmer)
Input/Output	4xGeneral Purpose IO PORT,1 x Serial RS232 DB9 Port
Extra User Interrupt	1 x On Board External Interrupt Switch (INT1)
Communication Port	1 x Serial DB9 Connector
Wired or Wireless	Wired
Utility	Research & Development, Education, Technical DIY
PCB Quality	FR4 Glass epoxy, High Quality
Weight	<195Gram
Installation	Four Mounting hole 3.0 mm for Easy Mounting(Board)
Supported IC	40Pin DIP 8051 IC(Board), 8051&AVR For Programmer
Extra User Peripheral(OnBoard)	1 x User LED Green (P2.0 Pin), 1xUser Switch P3.3
Processor Socket	ZIF (Zero Insertion Force) Socket, Easy Install IC
Bundled Items	8051 Board ,Programmer, 6-Pin Cable,Free USB Cable
