MY TechnoCare 8051 Microcontroller Board Small Development Board with MAX232 Atmel AT89S52IC MY TechnoCare www.MyTechnoCare.com

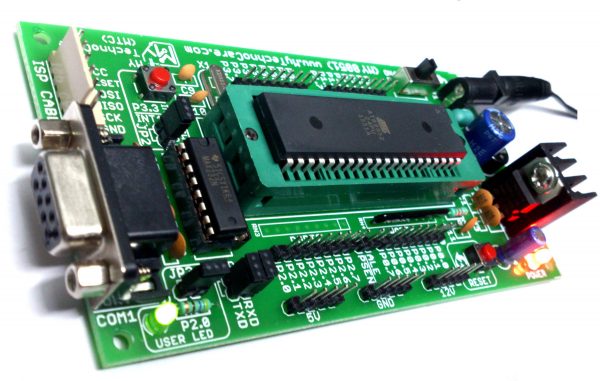

8051 Development Board With ZIF Socket,MAX232,Atmel AT89S52 Microcontroller IC

Original price was: ₹788.00.Current price is: ₹580.00.

DIP 40 Pin ZIF (Zero Insertion Force) Socket. For Easy Insert/Remove of IC
ZIF Socket Protect Your Microcontroller From Damage
On-board MAX232 Circuit for Easy Communication with a PC & other RS232 serial devices (GPS modules, GSM Modems, etc)
High-Quality FR-4(1.6 mm) PCB
On-Board bridge rectifier so the board can accept both AC & DC Input voltages Power supply
5 mm Power Plug-in DC Jack | Power ON-OFF switch.
5V regulator (LM7805) circuit.
Power indication RED LED.
On-Board GREEN USER LED at P2.0 through jumper JP3.
On-Board Input User Switch P3.3 through jumper JP2.
On-Board Input External Interrupt Switch (INT1) at P3.3 through jumper JP2.
On-board Quartz Crystal 11.05892 MHz
Support AT89S51, AT89S52, P89V51RD2, etc. 40-Pin DIP Chip
Port Extensions for all PORT with Detailed Labeling for Easy Identification of Pin
External Pull-Up resistors for Port 0
On-board ISP connector for loading HEX file into Microcontroller like AT89S51/52 etc.
Extra Vcc bus (5V and 12V) & GND bus for POWER Supply to the External Peripheral.
Four 3mm mounting Holes for Easy Mounting
On-board Reset button.

42 in stock

Description

8051 Development Board ZIF Socket with MAX232 & AT89S52 Microcontroller IC

8051 Microcontroller Board Project Kit Support AT89S51, AT89S52, P89V51RD2, etc. 40-Pin DIP Chip

Description of 8051 Microcontroller Board:

If you are learning microcontroller programming and want to make a project based on 8051 microcontrollers then this board will help you. With this board, you can develop and prototype with any of 8051(AT89S51, AT89S52, P89V51RD2, AT89Cxx) 40 pin microcontrollers. Because The board has 1.5 Amp bridge rectifiers allow this board to be powered with both AC and DC power supply adapters. A board having an RS232 Serial port for flashing the P89V51RD2 (NXP) microcontroller and also it is used for interfacing GSM module, GPS module, RFID module. Furthermore, there is a 5V, 12V, GND power bus which allows to power external peripherals module.

Features of 8051 Kit with ZIF Socket:

DIP 40 Pin Microcontroller ZIF (Zero Insertion Force) Socket. For Easy Insert and Remove of IC
ZIF Socket Protect Your Microcontroller From Damage
On-board MAX232 Interface Circuit for Easy Communication with a computer & other RS232 serial devices (GPS modules, GSM Modems, etc)
High-quality FR-4(1.6 mm) PCB
On-Board bridge rectifier so that the board can accept both AC and DC Input voltages Power supply
Recommended Input Voltage : 9-12V
Min-Max Input Voltage : 9-18V
On-Board 5 mm Power Plug-in DC Jack
On-Board 5V regulator (LM7805) circuit.
On-Board Power ON-OFF switch.
On-Board power indication RED LED.
On-Board GREEN USER LED connected to P2.0 through jumper JP3.
On-Board Input User Switch P3.3 through jumper JP2.
On-Board Input External Interrupt Switch (INT1) at P3.3 through jumper JP2.
On-board Quartz Crystal 11.05892 MHz
Port Extensions for all PORT with Detailed Pin Labeling for Easy Identification of Pin
External Pull-Up resistors for Port 0
On-board ISP connector for loading HEX file into Microcontroller like AT89S51/52 etc.
Vcc bus (5V and 12V) & GND bus provided to Give POWER Supply to the External Peripheral.
Four 3mm mounting holes for Easy Mounting
On-board Reset button.
Dimensions: 12cm x 6.4cm

Download 8051 kit document:

Package Contents:

1 X 8051 Development Board with ZIF Socket
1 X AT89S52 On-Board Microcontroller IC
1 X MAX232 On-Board RS232 driver IC

NOTE: POWER SUPPLY Adapter IS NOT Included WITH THIS ITEM.

Have any queries, Please Contact Us

More Related Items

Additional information

Weight	90 g
Dimensions	120 × 64 × 15 mm
Brand	MY TechnoCare
Model	MY010V2.1ZIF
Type	ZIF Socket Development Project Board
Power Supply	9 to 12 Volt AC/DC
MPN	MY010V2.1ZIF
Memory	For AT89S52 (8K bytes of Flash, 256 bytes RAM)
Processor Speed	For 89S52 (Up to 33 MHz) (On Board 11.0592MHz)
Input/Output	4xGeneral Pupose IO PORT,1 x Serial RS232 DB9 Port
Extra User Interrupt	1 x On Board External Interrupt Switch (INT1)
Communication Port	1 x Serial DB9 Connector
PCB Quality	FR4 Glass epoxy, High Quality
Installation	Four Mounting holes 3.0 mm for Easy Mounting
Extra User Peripheral(OnBoard)	1 x User LED Green (P2.0 Pin), 1xUser Switch P3.3
Processor Socket	ZIF (Zero Insertion Force) Socket, Easy Install IC
Display Technology	LED Indicator
Functionality	R&D,Product Development,Industrial & Student Hobby
Connectivity	Serial RS232
Wired or Wireless	Wired
Utility	Research & Development, Education, Technical DIY
Supported IC	AT89S51,AT89S52, P89V51RD2 etc. 40-Pin DIP ICs
Bundled Items	1 x ZIF 8051 Development Board With MAX232 & 89S52
UPC	Does Not Apply
